Introduction

Although FHR monitoring is mandatory in the labor management, full visual monitoring of cardiotocogram (CTG) is troublesome during the labor process in 10 or more hours, As it is requested to watch the continuous CTG chart and diagnose possible FHR changes, continuous FHR monitoring, prompt report of abnormal FHR, the most correct diagnosis and the assessment of fetal outcome would like to leave to a computer.

The deceleration pattern classification [1] was the subject of computerized diagnosis in the first study of our automated FHR diagnosis [2], visual impression had to be changed to numeric value, where the baseline heart rate in 5 min was determined by counting FHR data in every 10 bpm steps detecting the most data step, where FHR data in the step were averaged to determine baseline FHR, FHR variations were averaged to achieve long-term variability.

Deceleration pattern classification was complicated, namely, V-shape deceleration was found in periodic deceleration, dip- shape value was determined in every deceleration to classify V shape periodic and U-shape variable decelerations. Basic value is the amplitude (X) and the triangular base width (Y) and deceleration area is the sum of deceleration FHR-baseline FHR (D1-n) multiplied by sampling interval, i.e.

Then the dip area is divided by XY

The deceleration is V shape (early & late decelerations), if dip area <0.5

The deceleration is U shape (variable deceleraion), if dip shape >=0.6

(above 2  equations  were  obtained  by  statistics  of  visual decelerations.)

Te differentiation is complete, if FHR variation is 60 or more in variable deceleration. The calculation was created by Mizu [9].

Lag time was determined between peak of contraction & dip of deceleration in V-shape deceleration:

It is late deceleration, if the lag time is 20 or more sec.

It is early deceleration, if the lag time is less than 20 sec.

Such complicated procedure was needed in the determination of deceleration patterns as above in all decelerations [2]. As the character of late deceleration was vague and uncertain, the pattern classification method was collapsed in computerized monitoring; instead, novel hypoxia index covered all decelerations and continuous bradycardia.

Digital determination of deceleration is very simple if compared above digital translation of visual classification:

• Deceleration area [Cahill et al, 2018] [10] Base width of FHR deceleration x amplitude /2
• Hypoxia index [Maeda, 2018]

Sum of deceleration duration (min) / the lowest FHR (bpm)

Deceleration area was closely related to UApH, while hypoxia index was high in cases of cerebral palsy and low in normal cases, by which cerebral palsy can be prevented. Similar tendency is present among two digital parameters [9].

Methods
FHR score

The FHR score was calculated by the sum of evaluation scores of the FHR baseline and the parts of decelerations by the author, 1969 (Figure 1, Table 1), [3] (Table 2), instead of subjective visual pattern classification.

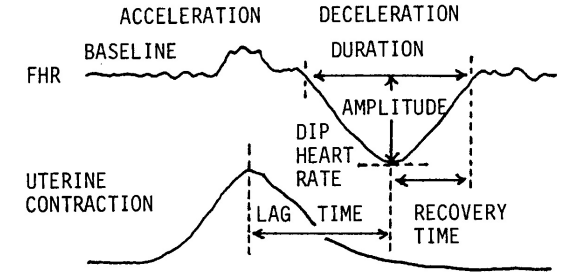

Figure 1: Determination of every parts of FHR changes in objective diagnosis of fetal heart rate curve [3].

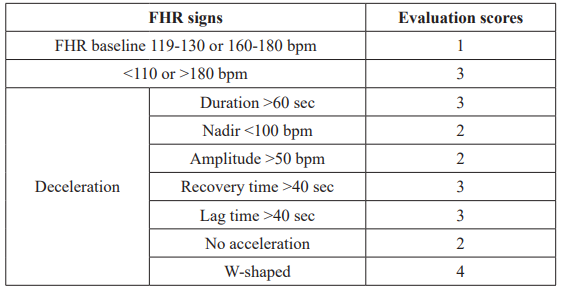

Table 1: Calculation of FHR score. The sum of evaluation scores in 5 minutes achieved FHR score. Evaluation score was decided according to the percentage of low Apgar score lower than 7.

The fetus is abnormal, if FHR score is 10 or more, and highly abnormal if the score is 20 or more.

Results

Fetal outcome was predicted even in the 1st stage of labor as follows by regression equation, i.e. FHR score is useful to indicate early delivery in early stage of labor (Table 2).

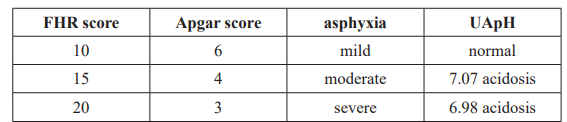

Table 2: Fetal outcome is predicted in the 1st stage of labor according to regression equations.

Hypoxia index

It is a novel FHR index to prevent cerebral palsy, created by the author.

Methods

As intrapartum hypoxic fetal brain damage was caused by frequent repetition of late decelerations as seen in 50 minutes repetition of late deceleration, but not by particular late deceleration pattern as seen in 3 connected late decelerations, thus, the sum of deceleration durations were divided by the lowest FHR, which meant hypoxia intensity.

Hypoxia index is the sum of deceleration durations (min) divided by the lowest FHR (bpm), and multiplied by 100 to be integer, where FHR was calculated instead of PaO₂, because heart rate was parallel to PaO₂ when PaO₂ was lower than 50mmHg [4], and fetal PaO₂ was lower than 50mmHg [3], while fetal blood sampling was hard in the labor. Hypoxia index covers all of early, late and variable FHR decelerations, as well as sudden continuous fetal bradycardia.

Results

Fetal hypoxia index (HI) was 25 or more in cases who had the loss of FHR variability and brain damage followed by infantile cerebral palsy, while the HI was 24 or less in the cases who had deceleration but neither fetal brain damage nor infantile cerebral palsy [5] (Table 3).

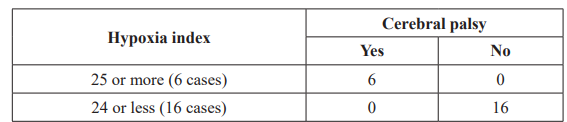

Table 3: Chi square test of hypoxia index and cerebral palsy.

p=0.000008<0.05, significant difference.

Thus, hypoxia index is calculated in computerized fetal monitoring, warning the presence of FHR deceleration, hypoxia index at present and that safe hypoxia index is 24 or less, every 5 minutes.

Frequency spectrum

Frequency spectrum of FHR curves was studied by the authors [6].

Method

Five minutes’FHR curve is always monitored by FHR score, hypoxia index and frequency spectrum, which reports the presence of pathologic sinusoidal FHR when La/Ta ratio is 39 or more and at the same time the PPSD is 300 or more, because pathologic sinusoidal is very ominous by severe fetal anemia close to fetal death. Although there is another benign sinusoidal curve, which was caused by the synchronizlation of FHR to periodic fetal movements, e.g. fetal respiratory movments, but not an ominous sign, only diagnosed by the periodic fetal movements recorded by actocardiogram, and, the false sinusoidal is not reported doctor, thus, the alarm of sinusoidal should not be overlooked in automatic fetal monitoring, because pathologic sinusoidal FHR is always malignant and close to fetal death, thus, urgent caesarean delivery followed by neonatal blood transfusion are performed to cure the baby from the demise.

Discussion

Fetal monitoring should be external method which is able to monitor the fetus before the rupture of membrane in the labor and even in pregnancy., namely, ultrasonic Doppler autocorrelation FHR meter, or abdominal fetal ECG with multiple electrodes excluding maternal ECG will detect FHR curve. FHR computer will be composed in single channel for single pregnant woman, or centralized multiple time sharing system monitorig multiple deliveries. Analyzing program will be the detection of basic FHR components, FHR score to predict fetal outcomes, hypoxia index to predict and prevent cerebral palsy, frequency spectrum analysis to diagnose pathologic sinusoidal heart rate and A/B ratio in actocardiogram, and so on. Quick and direct reporting system to doctor is mandatory for clinical purpose.

Hypoxia Index (HI) is novel and unique in the present study to predict the loss of FHR baseline variability and fetal brain damage followed by cerebral palsy. The hypoxia index=The sum of FHR deceleration duration (min) divided by the lowest FHR (bpm) and multipled by 100, of which purpose is to collect the summation of hypoxic effects in repeated FHR decelerations, where 25 or more of HI predicts the cerebral palsy, and the HI is 24 or less to prevent cerebral palsy.

The data of FHR curve frequency spectrum indicates pathologic sinusoidal FHR showing fetal anemia [6]. A/B ratio is the ratio of FHR acceleration duration to that of fetal movement burst of which value is less than 1 when Apgar score is lower than 7 [7]. The perinatal mortality decreased and cerebral palsy was zero, when there was direct and rapid reporting system in centralized computer [8].

Conclusion

The computerized fetal monitoring improves busy obstetric doctors. Although the caesarean delivery was allowed after the loss of FHR baseline variability in common CTG, namely it prevented fetal death, while it was unable to prevent the cerebral palsy. Early delivery should be performed before the loss of variability to prevent fetal brain damage followed by cerebral palsy [5], while the hypoxia index is 24 or less in the update numeric diagnosis of intrapartum fetal monitoring, where early delivery is performed keeping the hypoxia index at 24 or less level to prevent the loss of variability and fetal brain damage followed by cerebral palsy.
